What?
- According to this article The United Nations has warned that the world is soon going to be hit by a tsunami of electronic and electrical waste (e-waste).
- The report, titled ‘A new circular vision for electronics’, released on January 2019
Reference
Why?
- This article explains how to build a remote control starter robot out of recycled remote control toy car.
- Recycle E-waste
- Save cost
- Build quickly
How?
Hardware’s Required:
- Robot Chasis 4Wd
- E-Waste RC Toy Car
- Screw Driver
- 7805 Voltage Regulator
- 12V DC Power Supply / Battery
- Connecting wires
Implementation

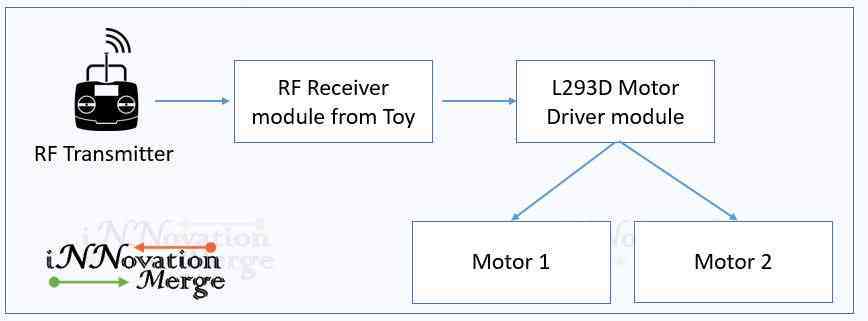

Block Diagram
Find reusable E-waste car toy

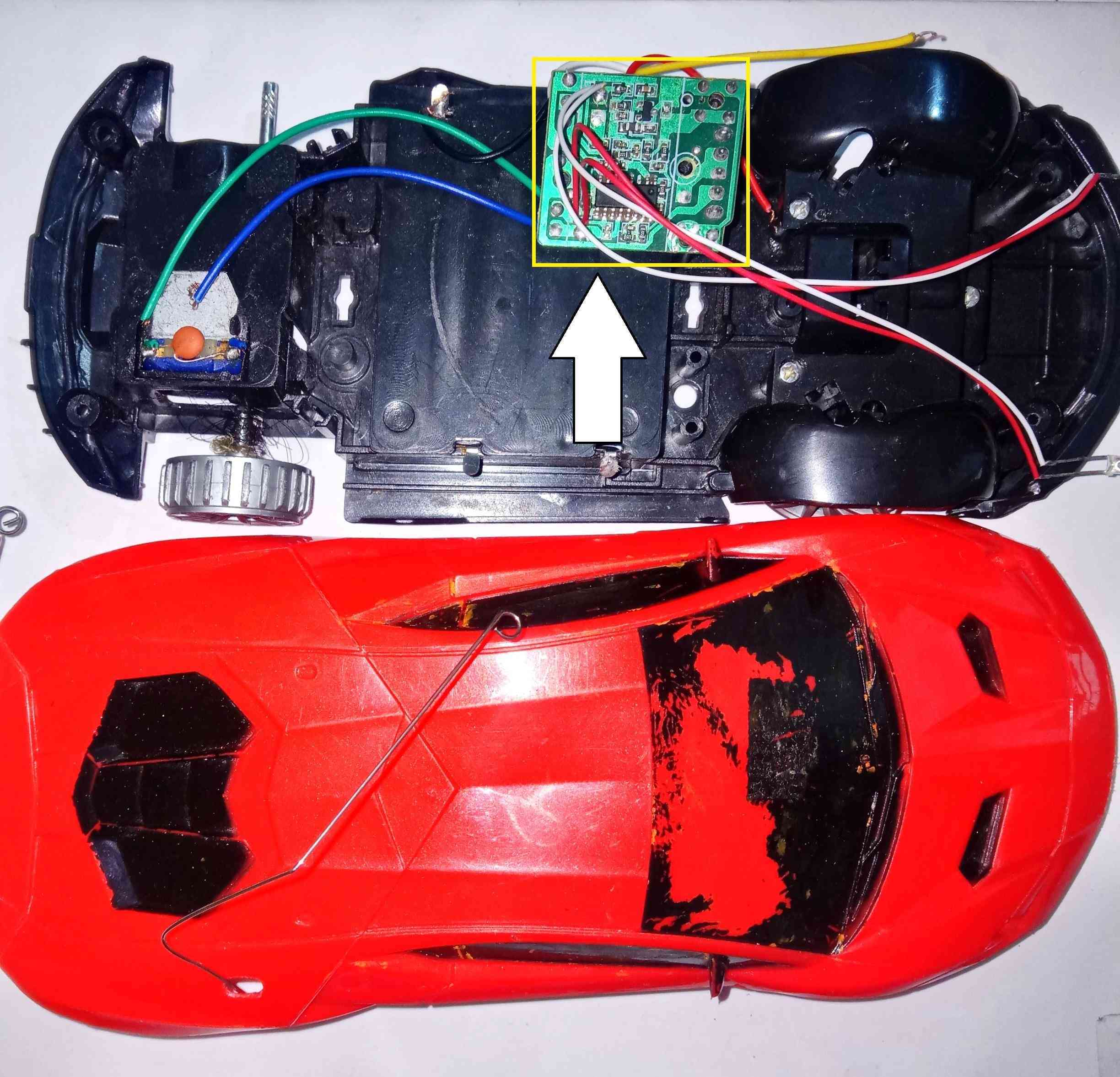

Take out RF receiver circuit

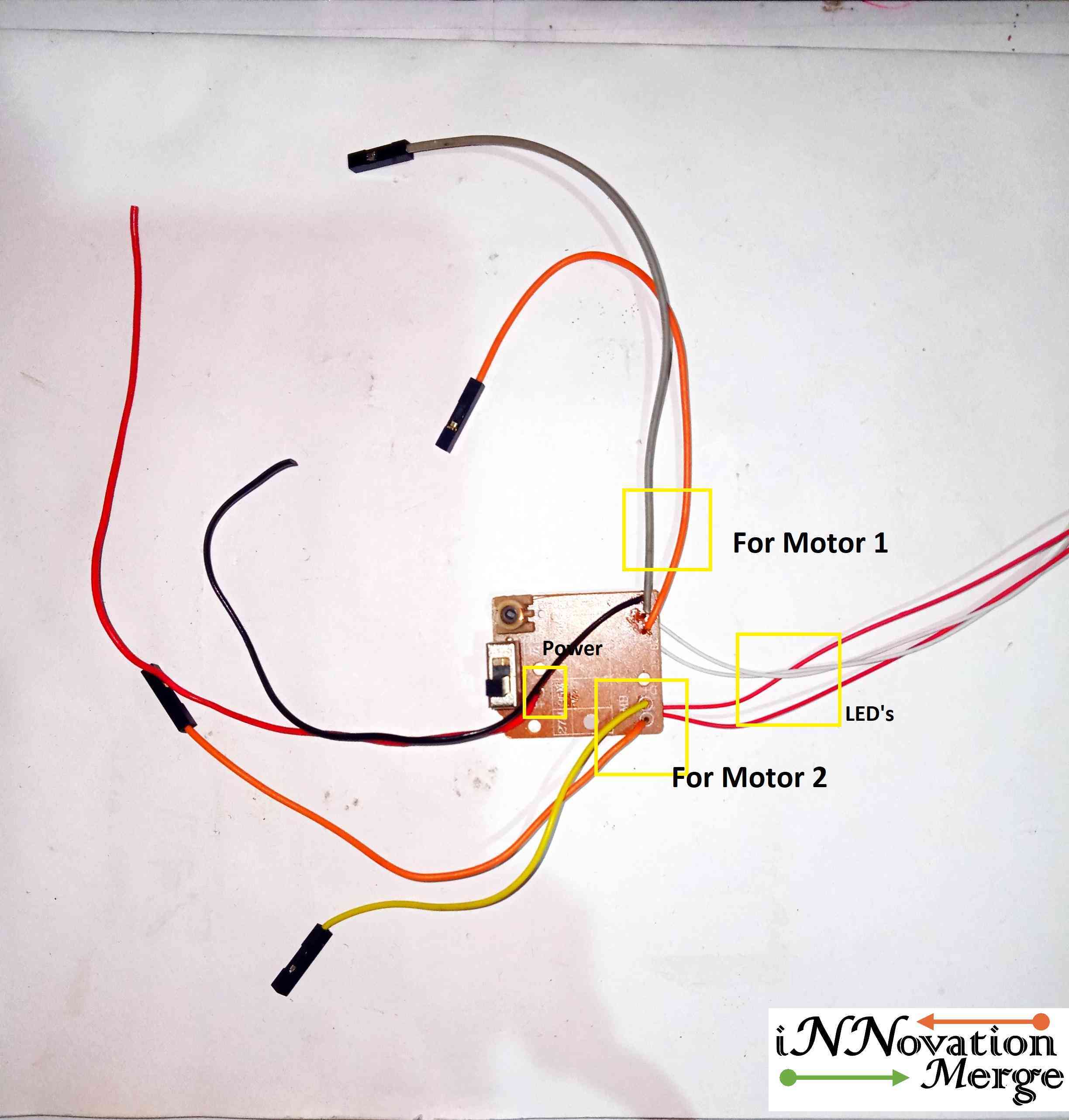

Identify the connections of RF Receiver

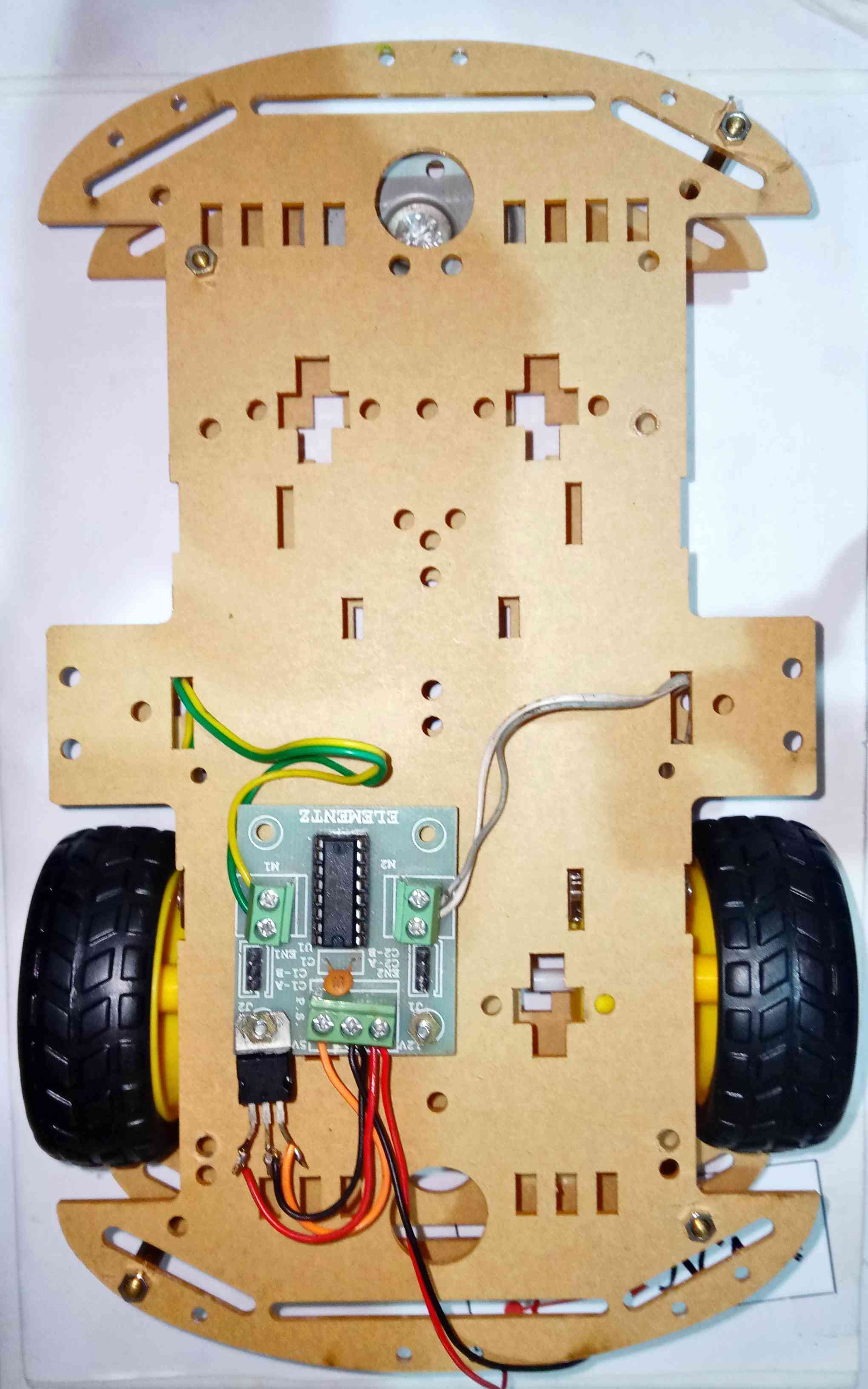

Assemble chassis and motor
Connect L293D/L298N Module to the motor
Connect the L293D/L298N, Motor and RC Toy Car Receiver as per below circuit
Watch below demo video to know how it works
