What?
- Windows 10 IoT Core is an optimized smallest version of Windows 10 Editions for smaller devices such as DragonBoard 410c, MinnowBoard MAX, Raspberry Pi 2/3.
Why?
- Windows 10 is well known OS for Personal computers, Tablets and Mobile phones.
- Microsoft has designed an OS to be run on low-power devices.
How?
Software’s Required
- Laptop with Windows 10 OS
- Windows 10 IoT Core Dashboard
Hardware’s Required
- Raspberry Pi 3 model B
- 5V 2A Micro USB Power Supply for Pi
- 16GB/32GB Class 10 micro SD Card
- HDMI Cable
- Wifi/Ethernet Cable
- Keyboard for Pi
- Mouse for Pi
Network Requirements
- Internet to download packages
Implementation

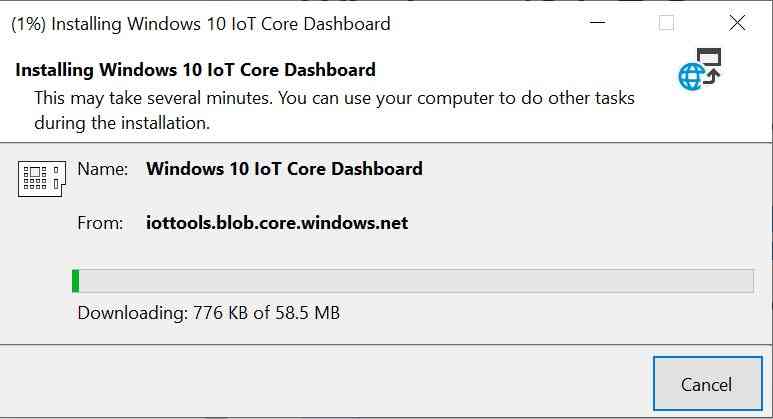

Download and Install Windows 10 IoT Core Dashboard

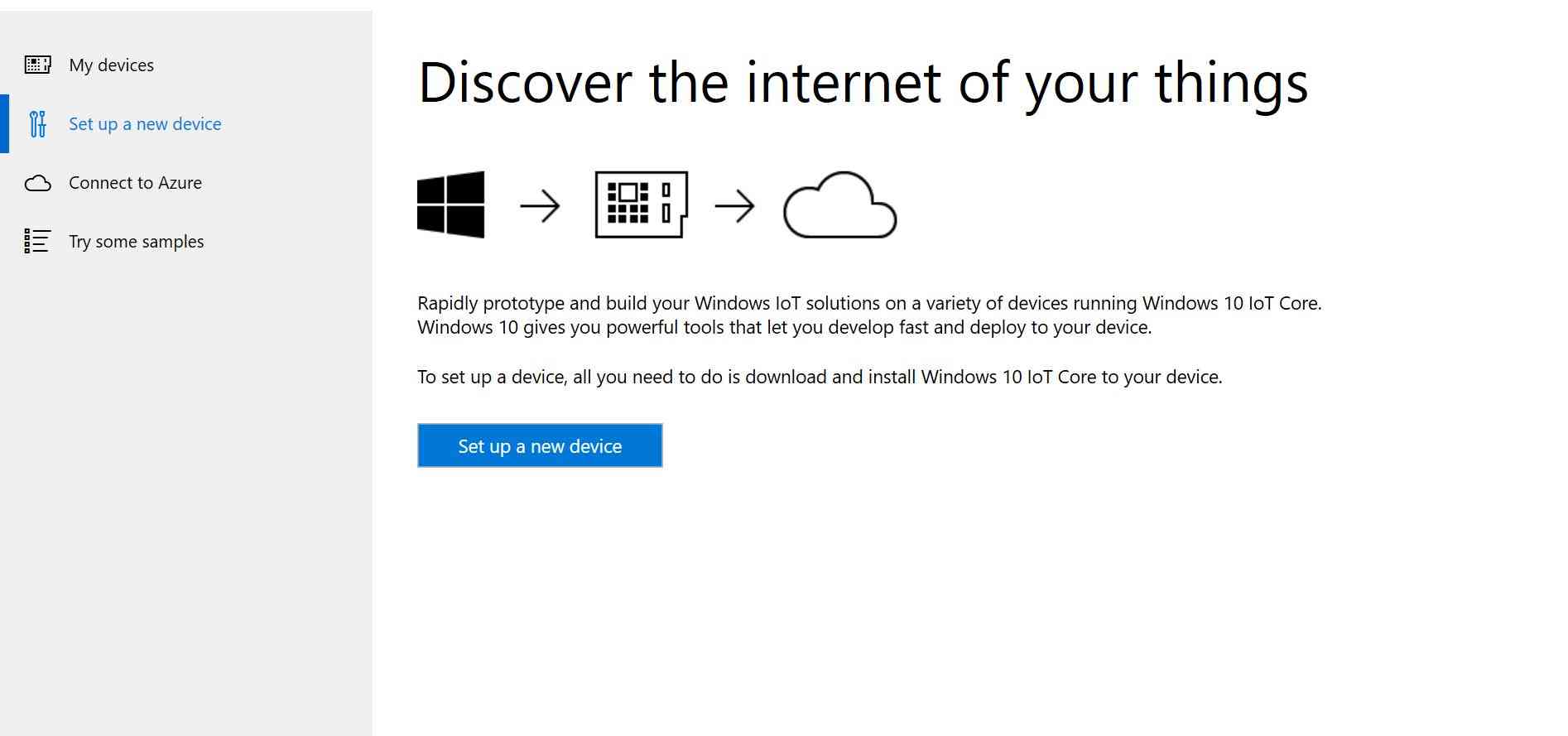

Open Dashboard and Click on Set up a new device
Insert micro SD Card to Laptop

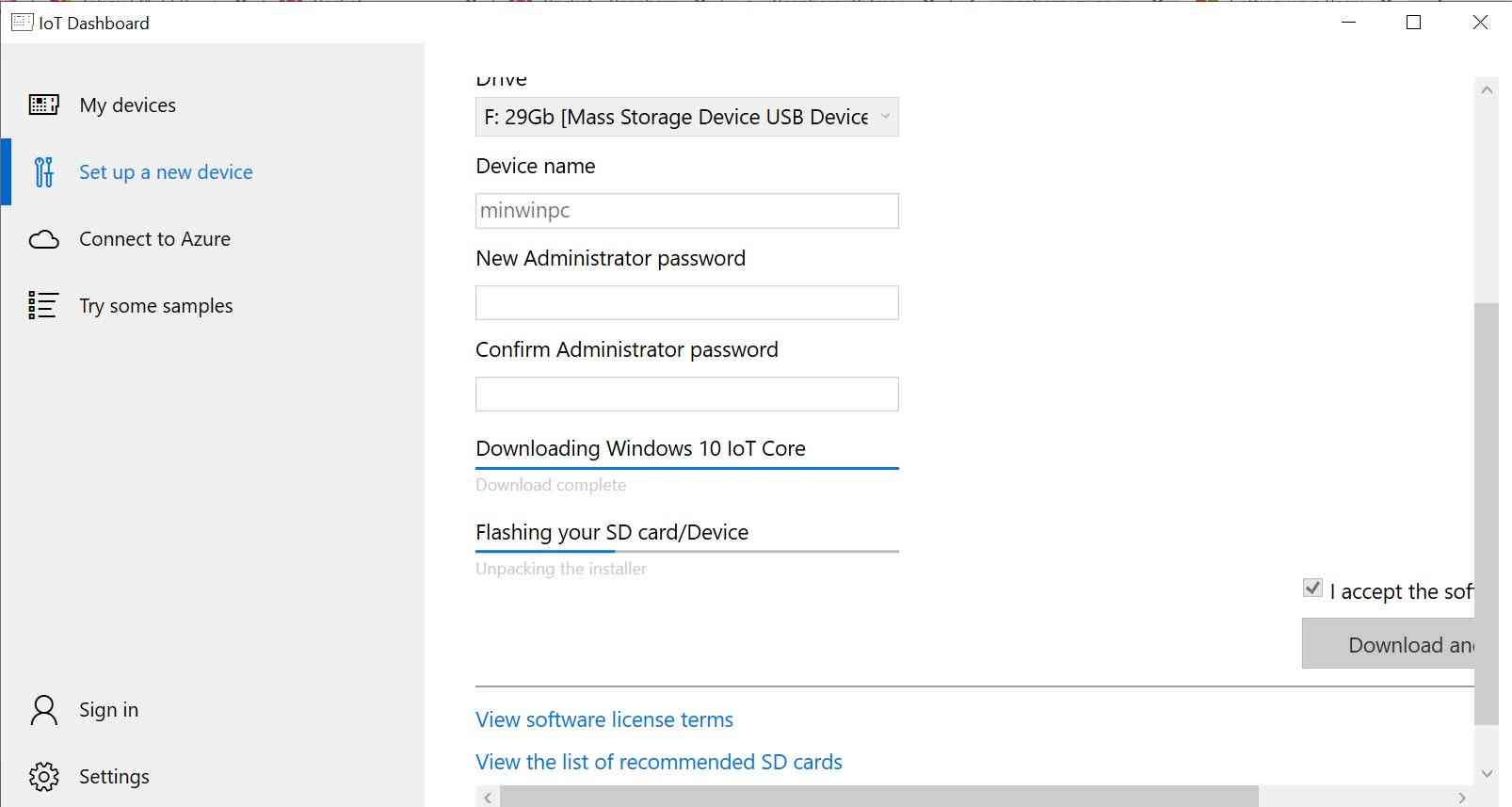

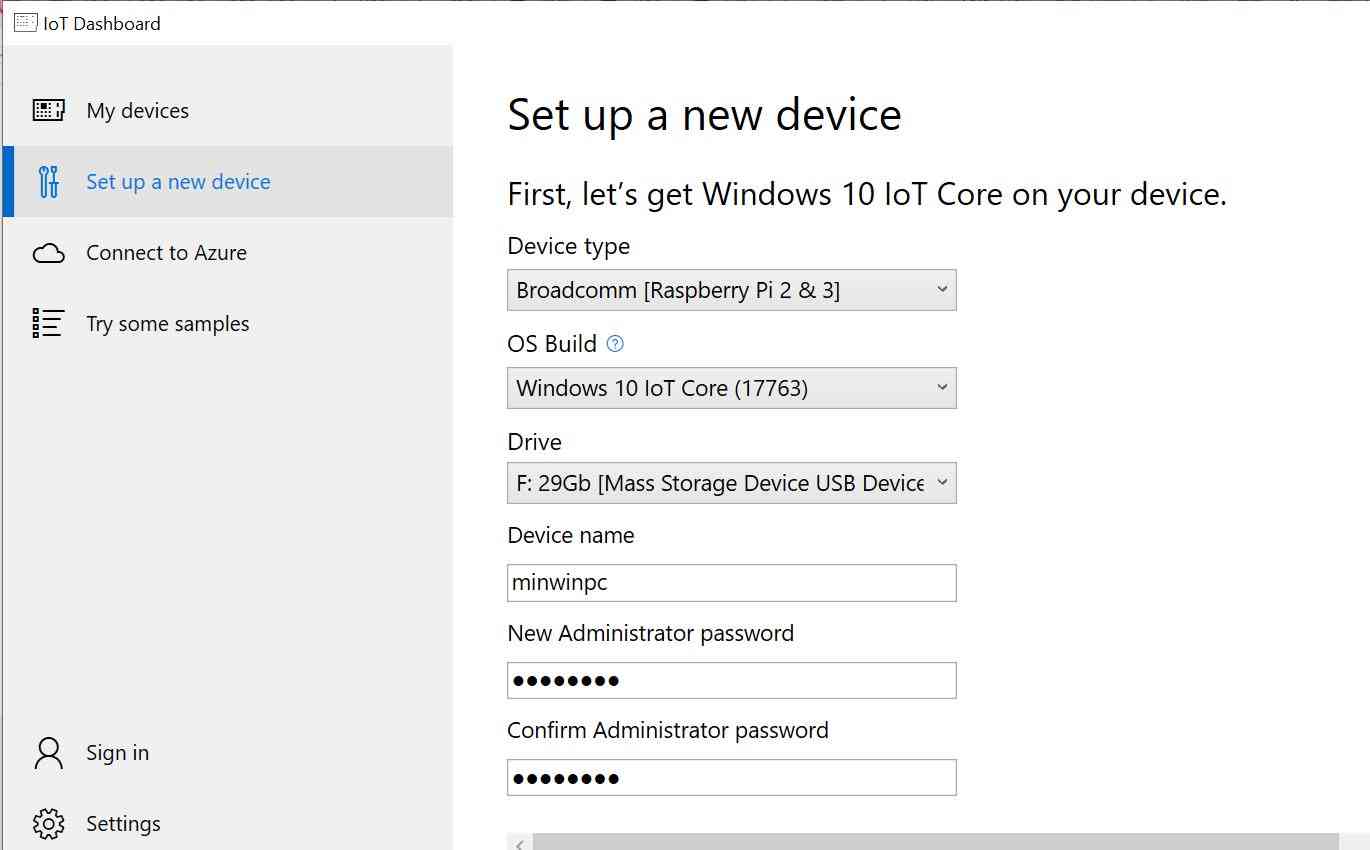

Select option as below with custom Device name and Password

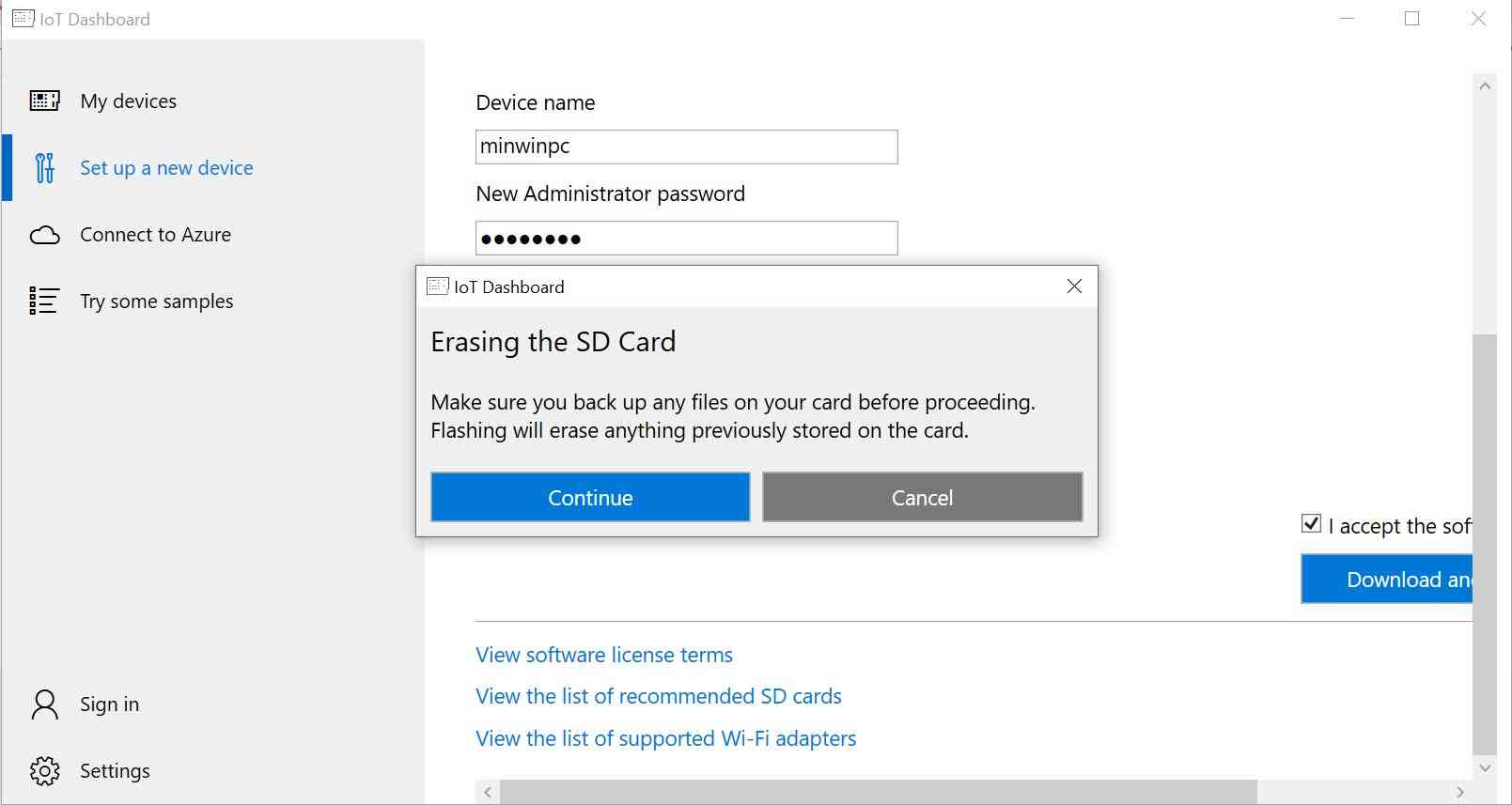

Verify the SD Card Erasing message and click on Continue

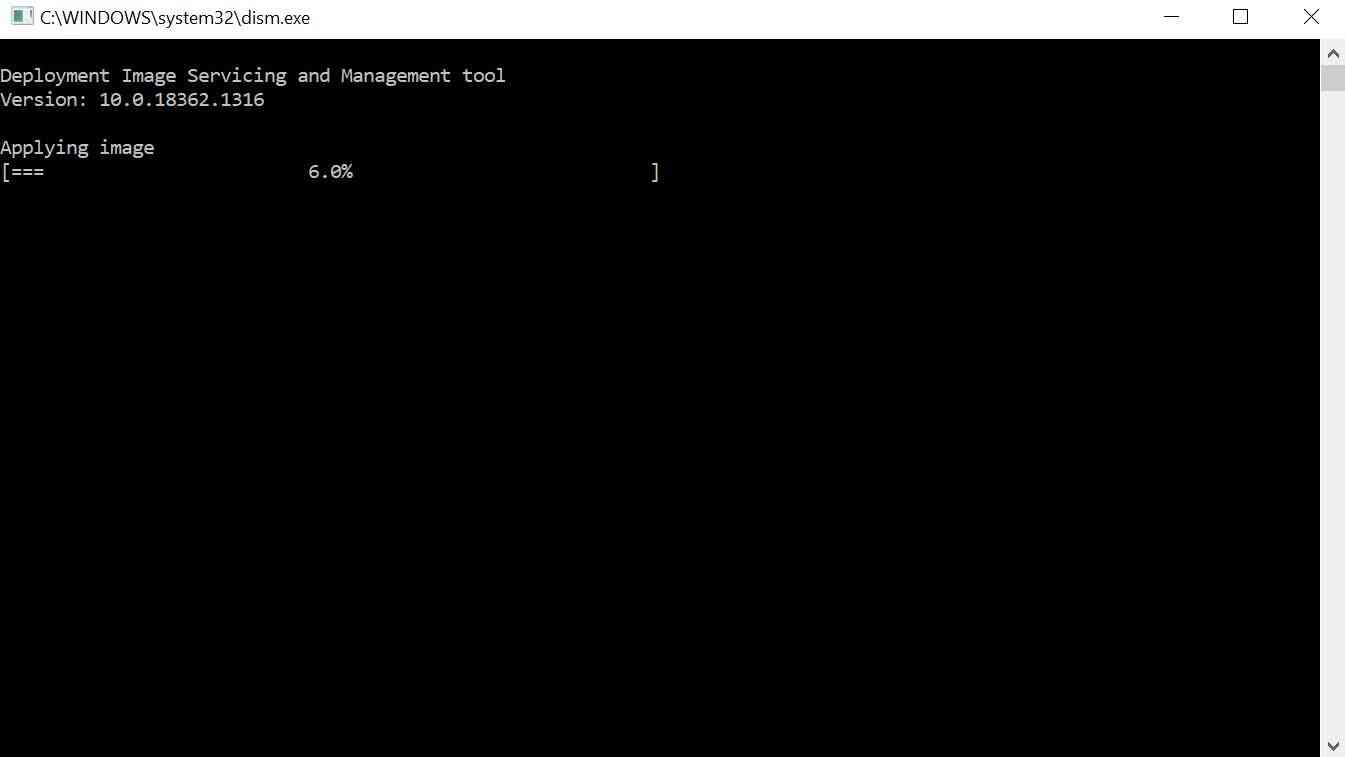

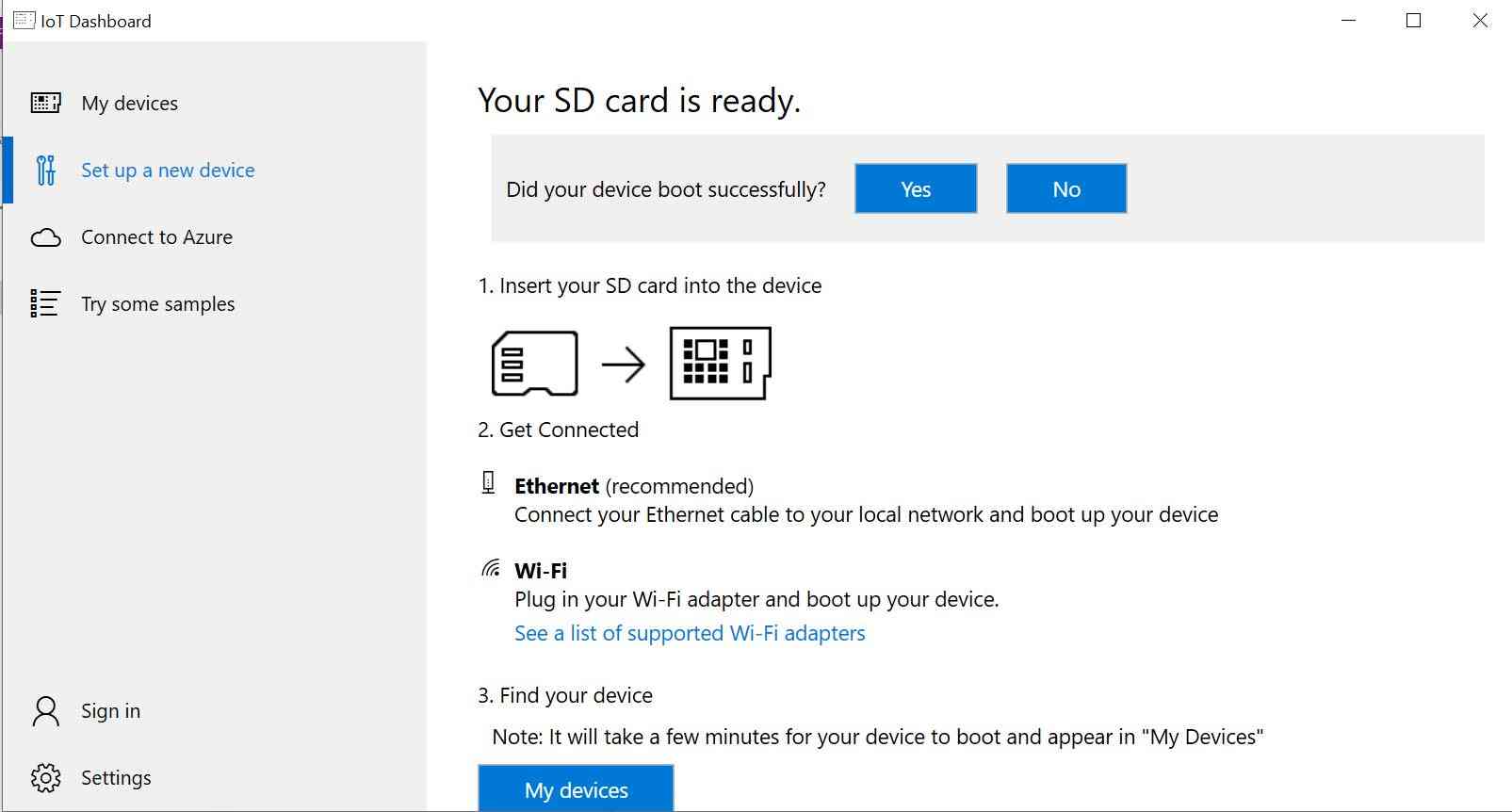

Dashboard downloads and install Windows 10 IoT Core to SD Card

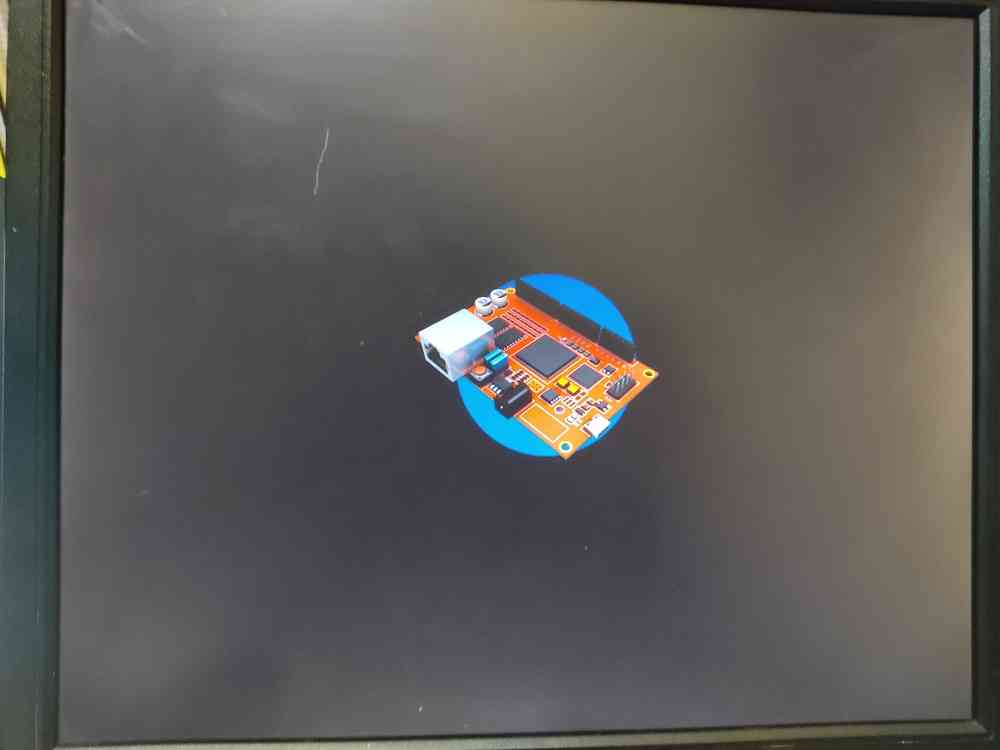

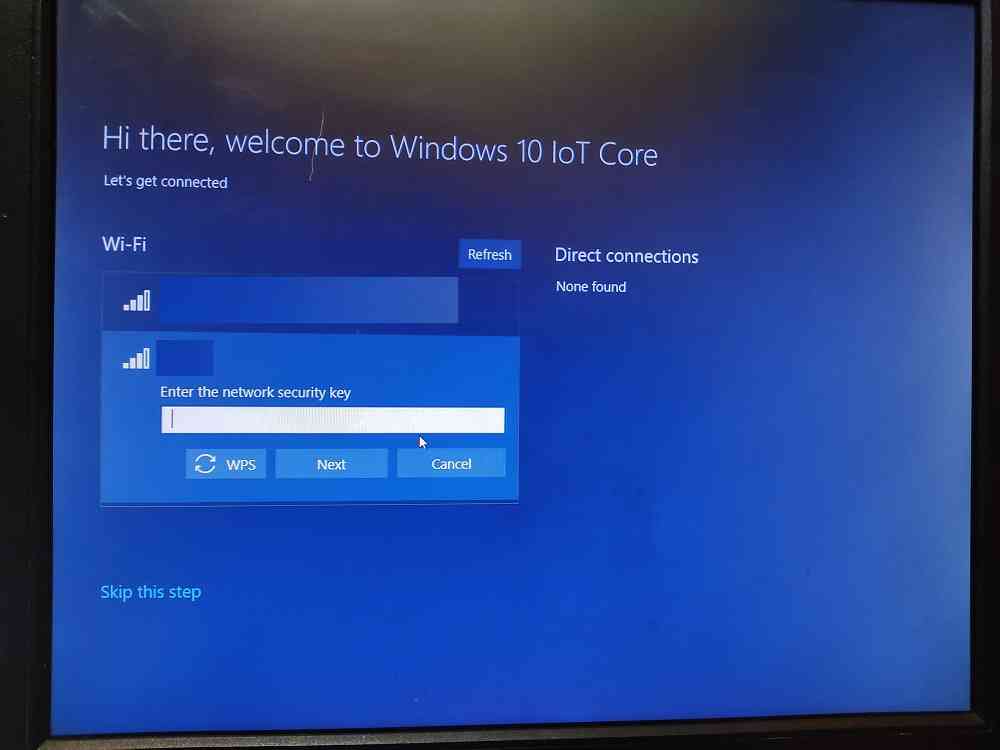

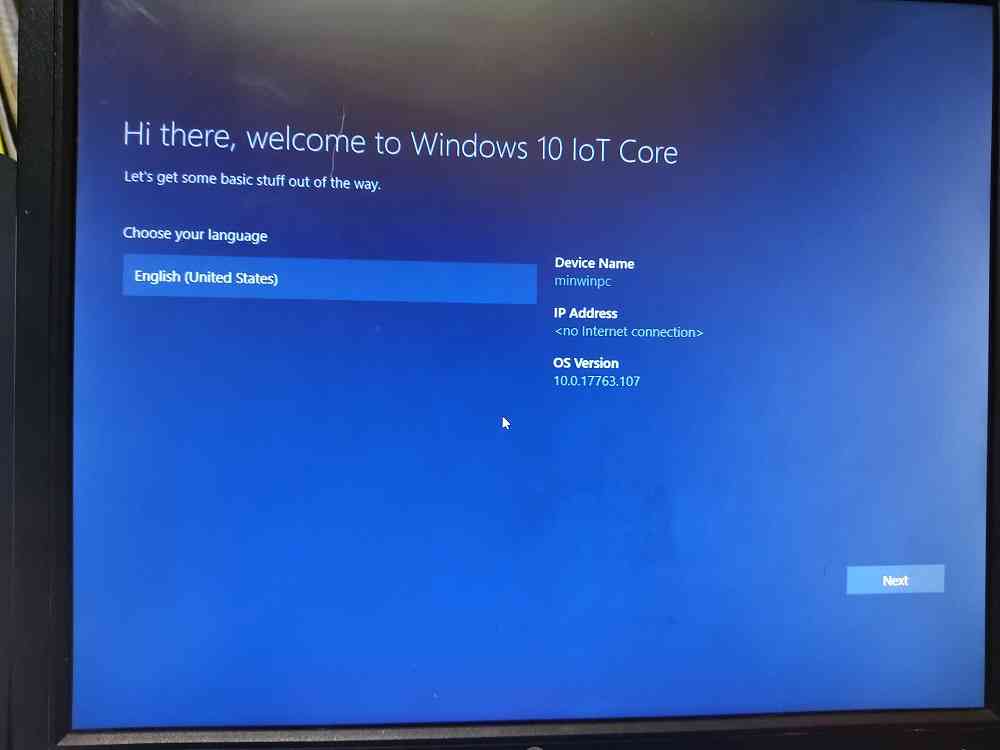

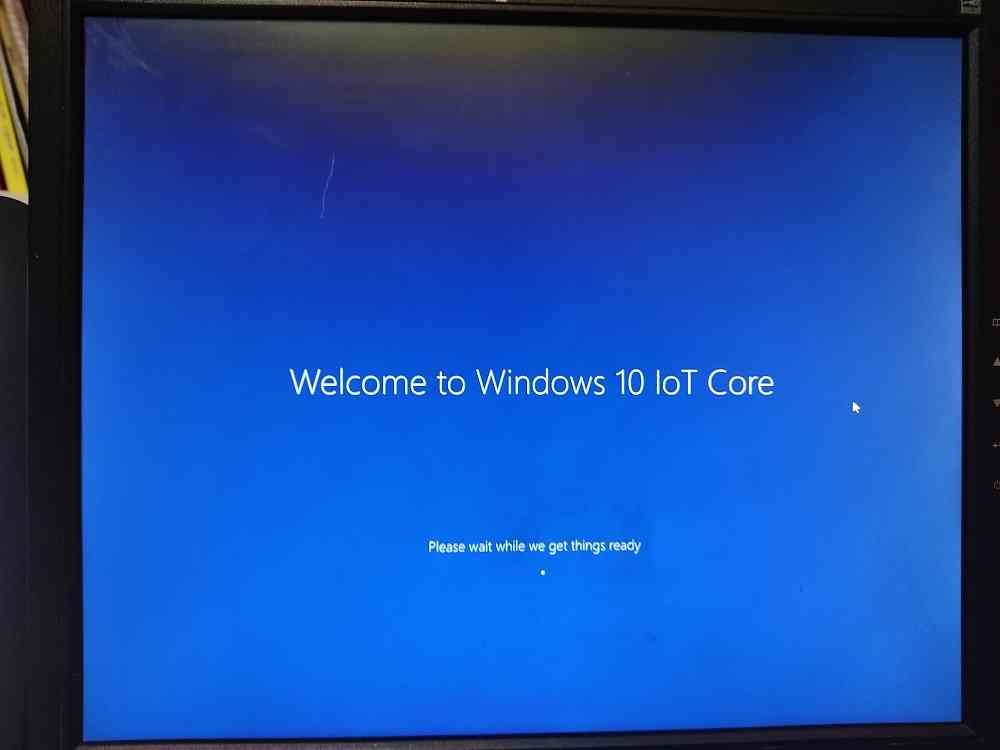

Take out SD Card and insert back to Raspberry Pi and Boot

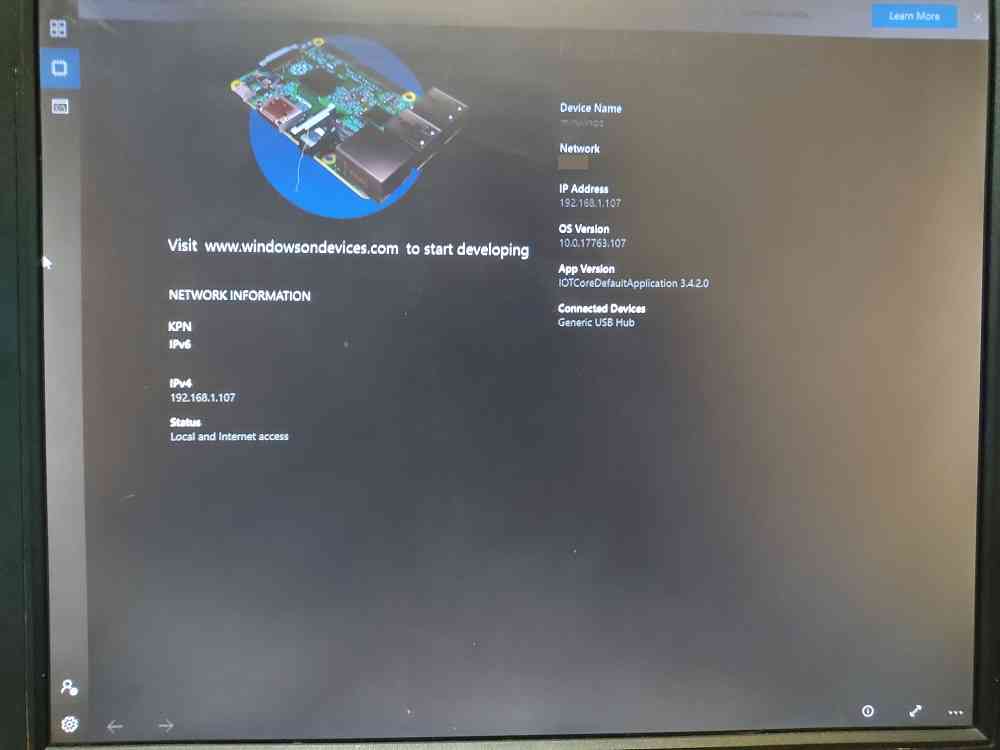

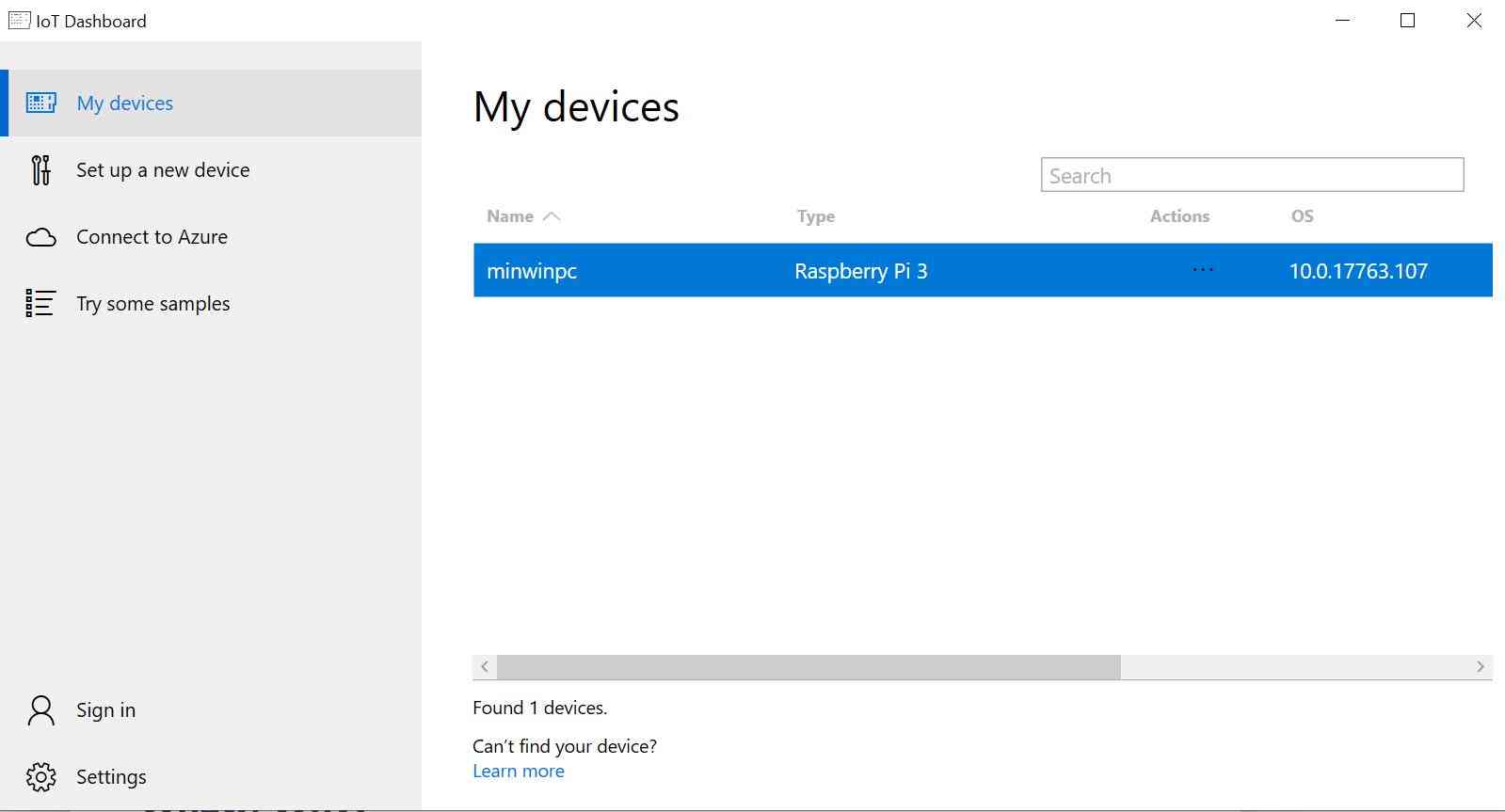

Go back to Dashboard and select My devices to view Connected Raspberry Pi

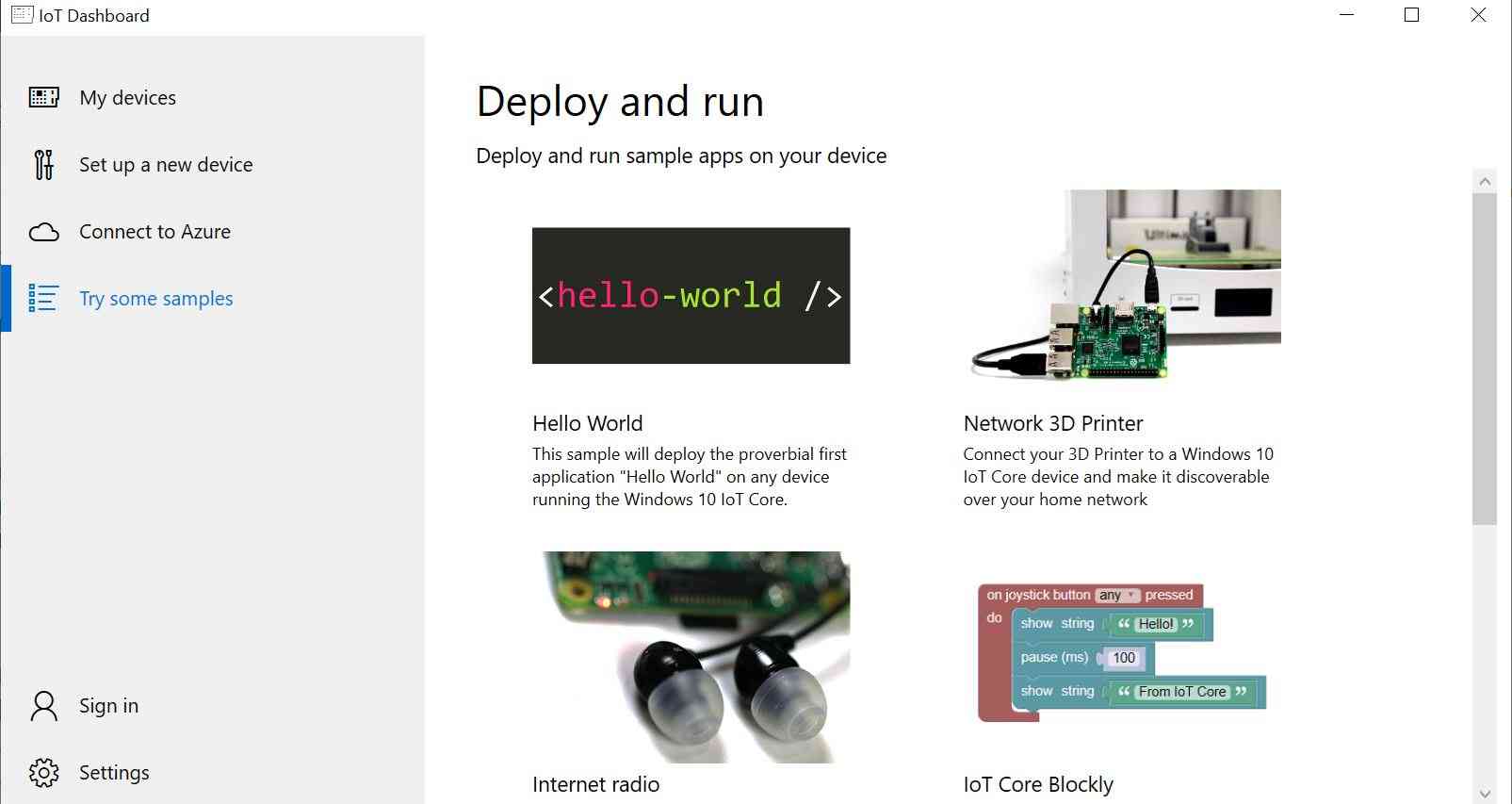

Click on Try More samples

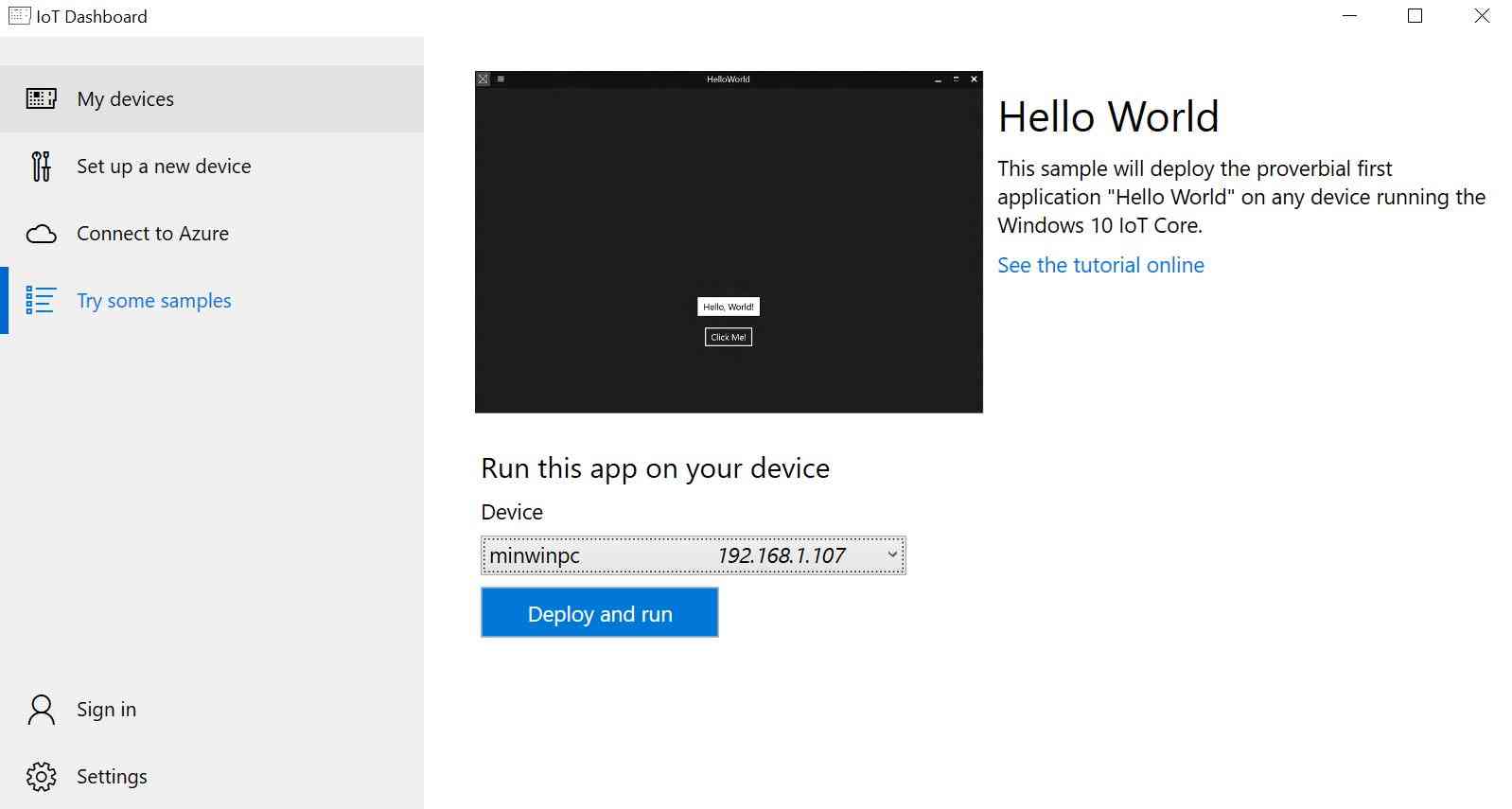

Depoly and run Hello world app

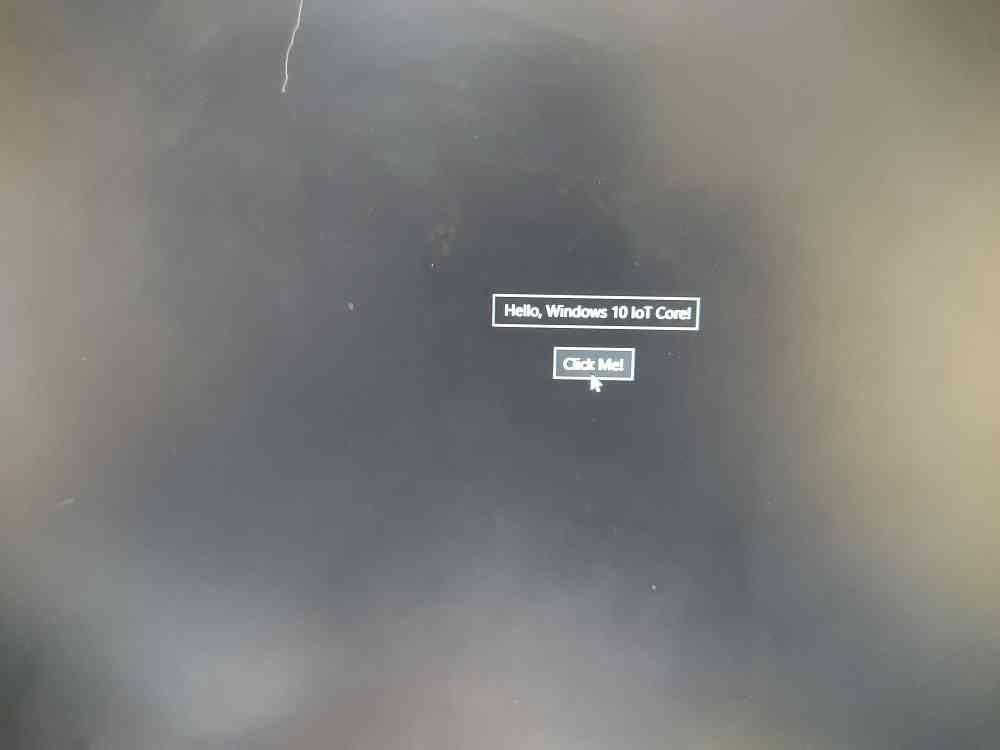

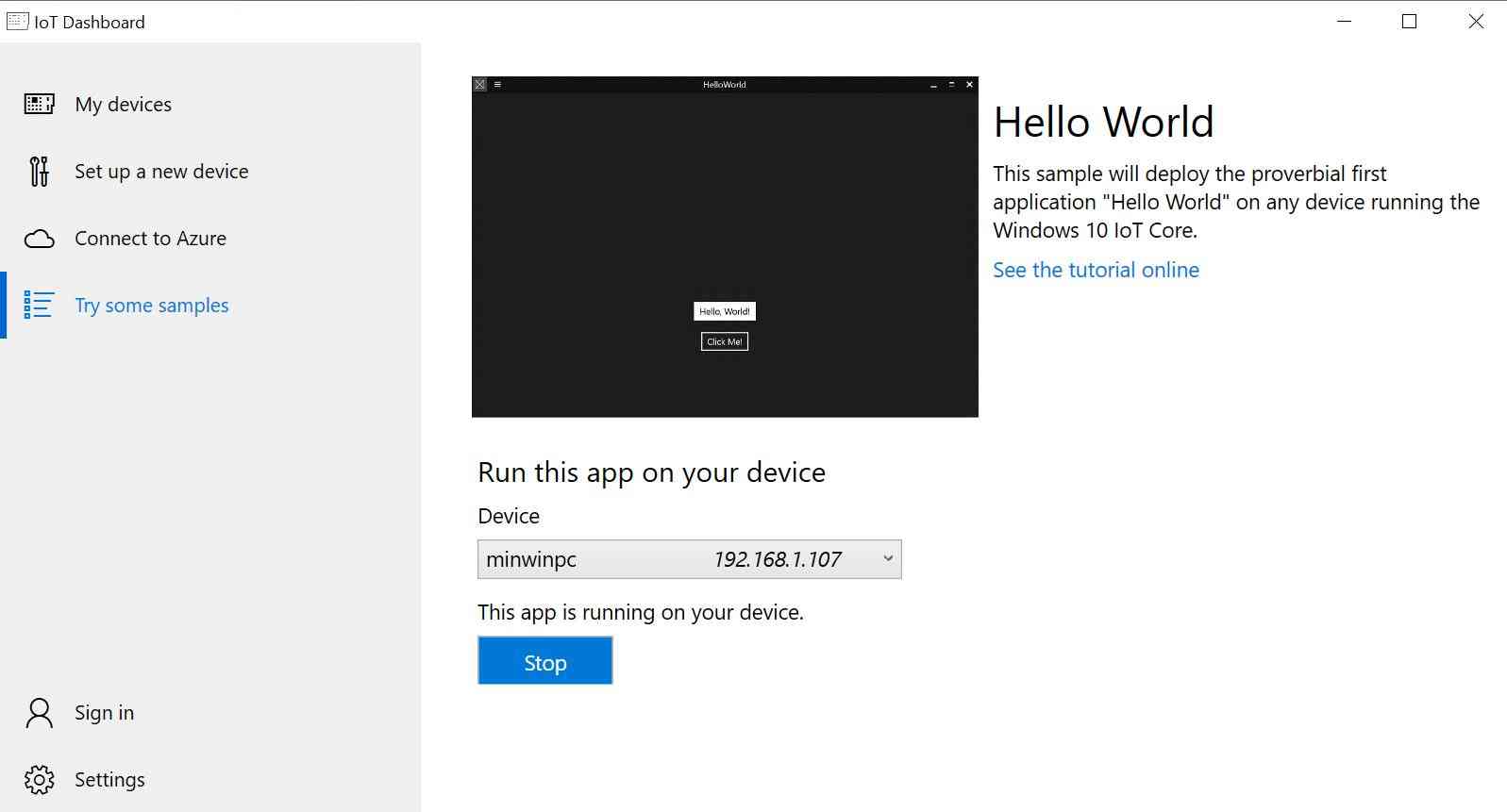

Application runs on Raspberry Pi
Stop Application
Great, iNNovationMerge hope that you have understood how to install and Run Windows 10 IoT Core on Raspberry Pi
